Construction is currently underway for large-scale improvements at two public high schools in Champaign, IL. TGRWA is the Structural Engineer of Record for the renovations and additions at Centennial High School and Central High School. Smaller auxiliary buildings to benefit the schools’ sports teams at Spalding Park and McKinley Park were also designed as part of the project.

Structural scope at Centennial High School includes additions totaling approximately 110,000 square-feet and minor renovations to the existing approximately 200,000 square-foot structure. New spaces to be provided include: classrooms, offices, shops, and a gymnasium that will double as a storm shelter designed per the latest ICC-500 guidelines.

Structural scope at Central High School includes additions totally approximately 180,000 square-feet, including: classrooms, offices, shops, a storm shelter, a gymnasium, and a 750-seat theater. Significant partial demolition and renovation of the remaining existing approximately 170,000 square-foot building led to designs which were aided by TGRWA’s extensive experience of renovating existing structures.

Overall, TGRWA has provided individualized structural designs for new and existing structures that aim to meet the goals of the school district as efficiently as possible.

Project Highlights
Total Size: New construction over four buildings totaling approximately 300,000 SF; renovation of two existing buildings totaling approximately 370,000 SF
Structural Engineer of Record: TGRWA
Architect of Record: Perkins+Will / IGW
General Contractor: O’Shea Builders
Owner: Champaign Unit 4 School District

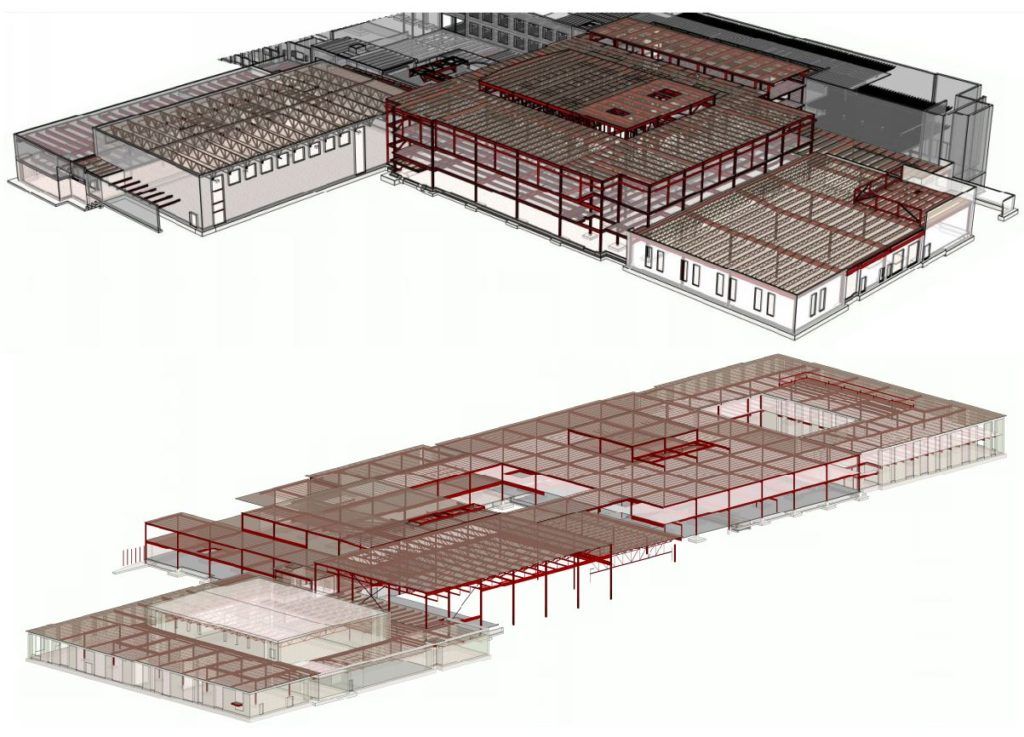

Overall views of existing structures and additions for Central High School (top) and Centennial High School (bottom)

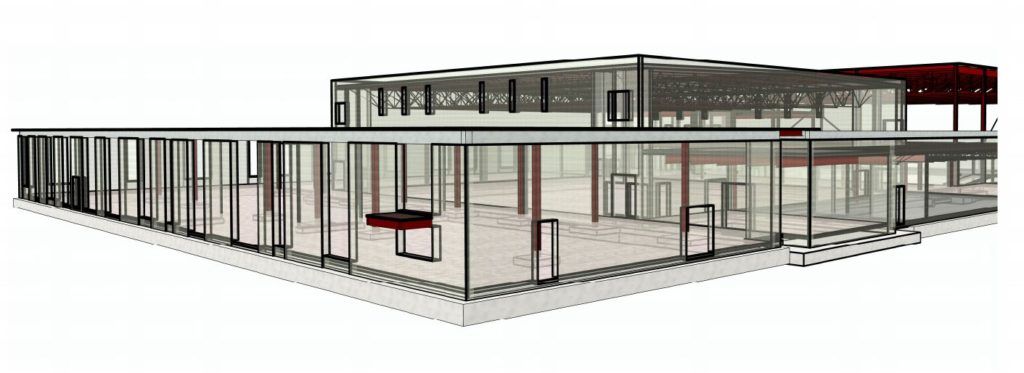

Centennial’s new gymnasium (above) doubles as a storm shelter per the ICC 500 provisions (facing southwest)

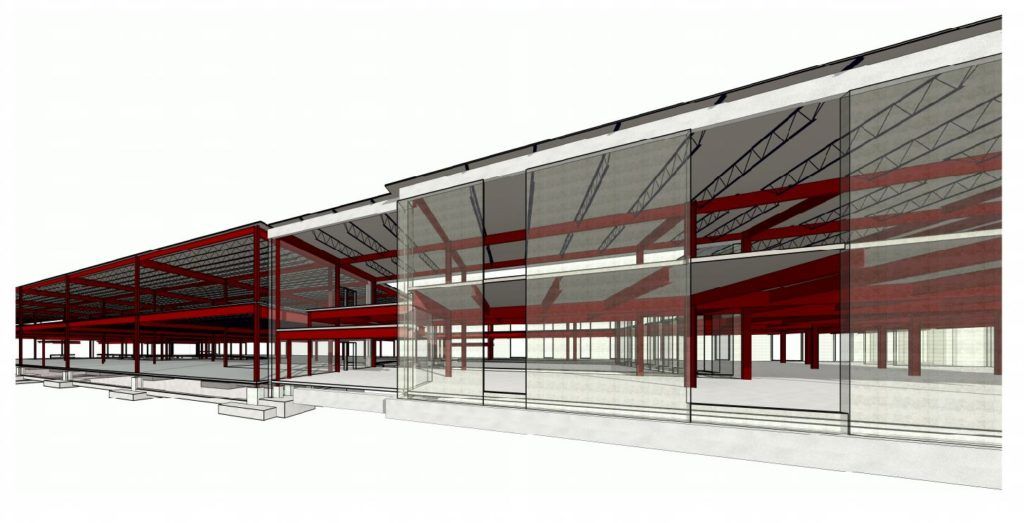

Additions for Centennial High School were located in three areas: north, south, and east of the existing structure. The addition to the south (shown above) blends seamlessly with the existing structure while providing more classroom space and a new courtyard.
(facing southeast)

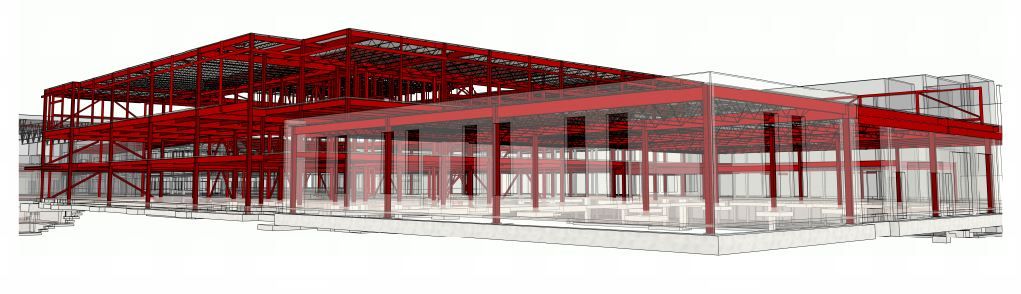

The largest addition of the either building was located on the north side of the existing Central High School. Partially located in an a wing of the existing structure that was demolished, this multi-story addition (shown above) is highlighted by a new atrium and auditorium. (facing southeast)

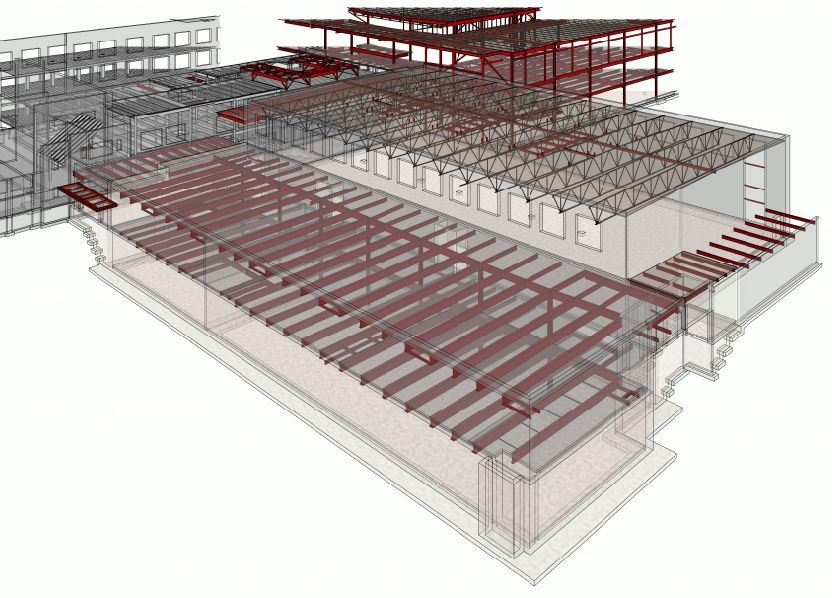

Similar to Centennial High School, Central High School has an addition (shown above) that will act as a storm shelter per the ICC 500 provisions. (facing southwest)
